s/y Fiona - our Bruce Roberts Offshore 44'

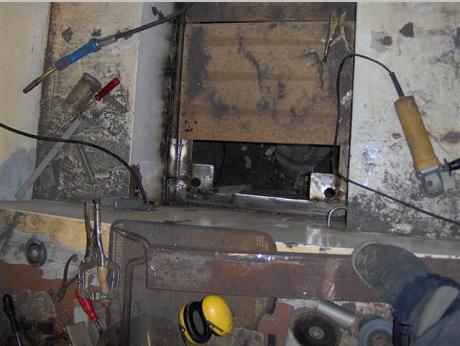

Her's the exhaust and bilge pump collector on their way in...

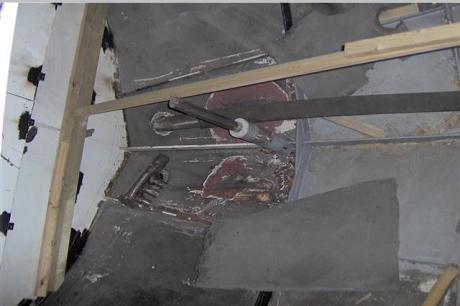

Cockpit drainpipes in place in the corners.

The two pipes are the dorado air inlets for the aft cabins. These will have a rod inside attached to a lid with a handle in the other end so they can be closed from inside.

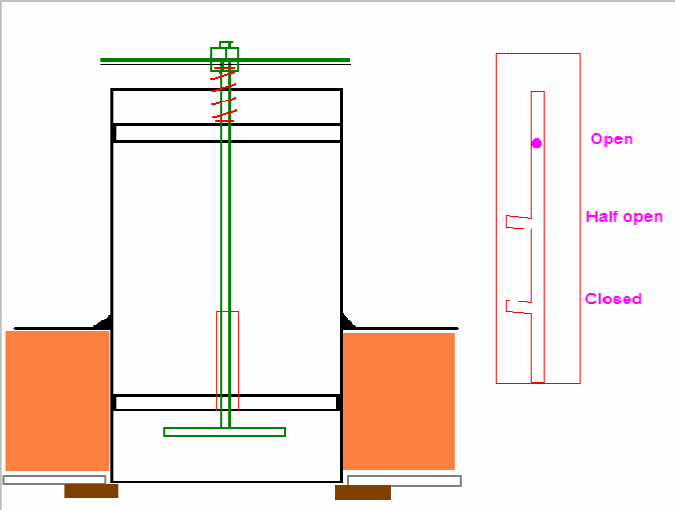

Above is how it should work. The rod with lid and handle in green, is held in open position by the stainless spring in red.
To close it - pull the handle and turn 1/4. The handle musn't be below the tube when closed - no injuries please.

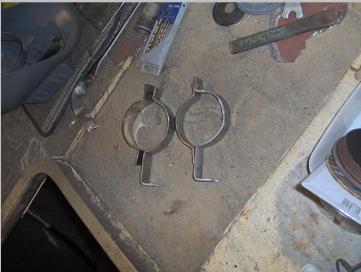

This is the two support for the exhaust tube. It will rest on rubber pads so no vibrations is lead to the hull. Silence is important ;-) (hand and hammer made of 3 mm 316L steel)

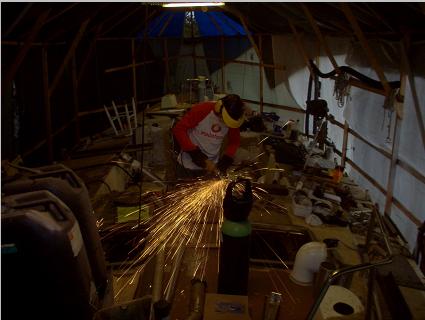

And finally I got this picture of Co Welder #1, Anton!
