| s/y Fiona - our Bruce Roberts Offshore 44' |
 | |  | |  | |  | |
Copyright (c) 2005-2023 Martin Erlandson, Sweden

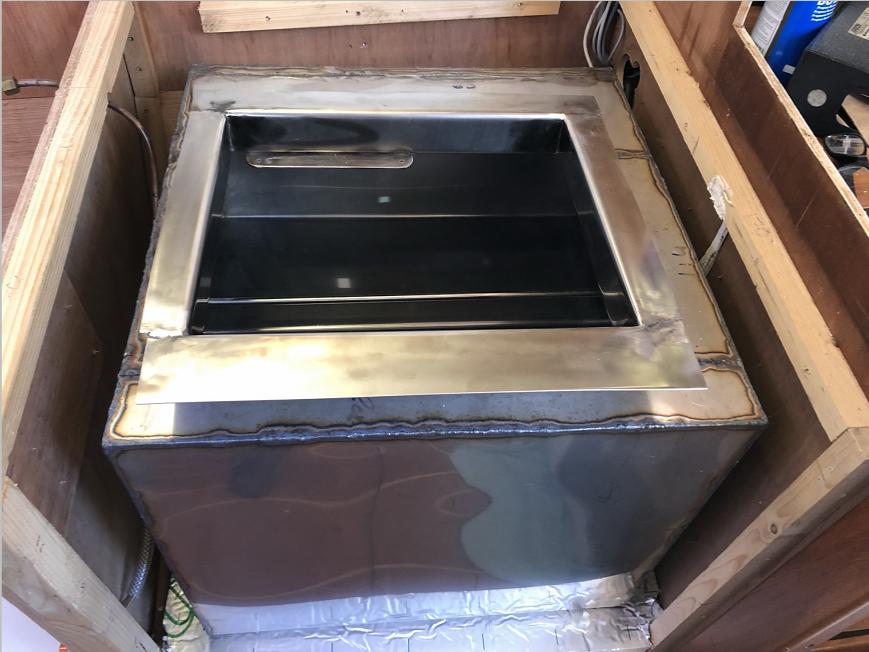

Right! Welding done!

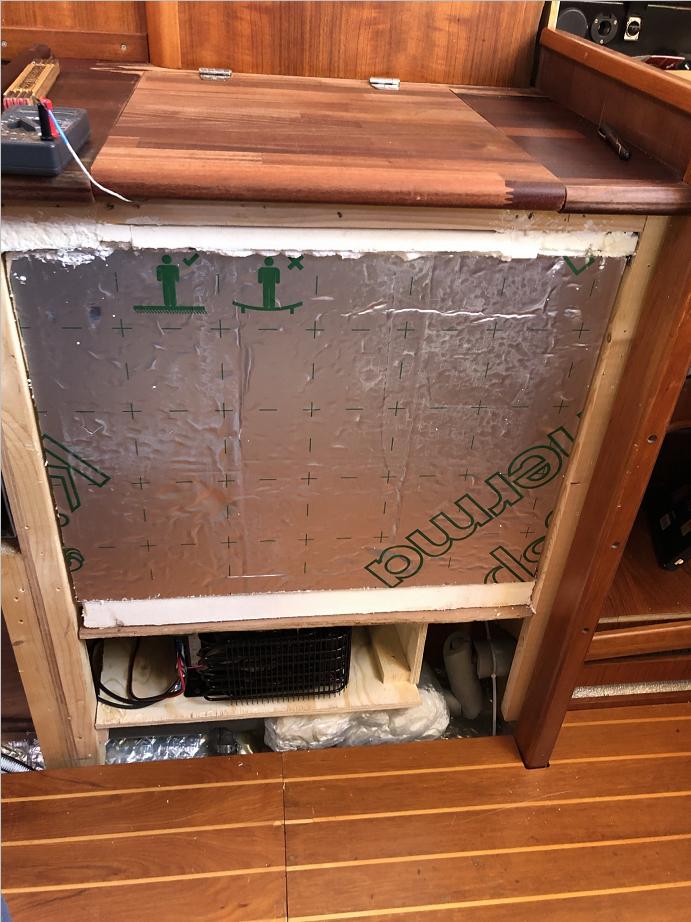

Snug fit in the boat. Just the 50 mm super foam (and the propane copper tube to the left) has room here now.
The lid/collar of the box is also on now. for the upper shelf in the box there is a horisontal 10mm tube to keep things on the shelf. Need small baskets for small things but its - for me - very important to have a fridge that is simple to clean - often.

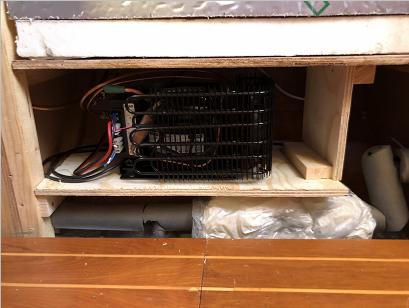

Below: Compresser sits below the fridge box. The insulated tube is the waterheating system - don't heat the fridge.

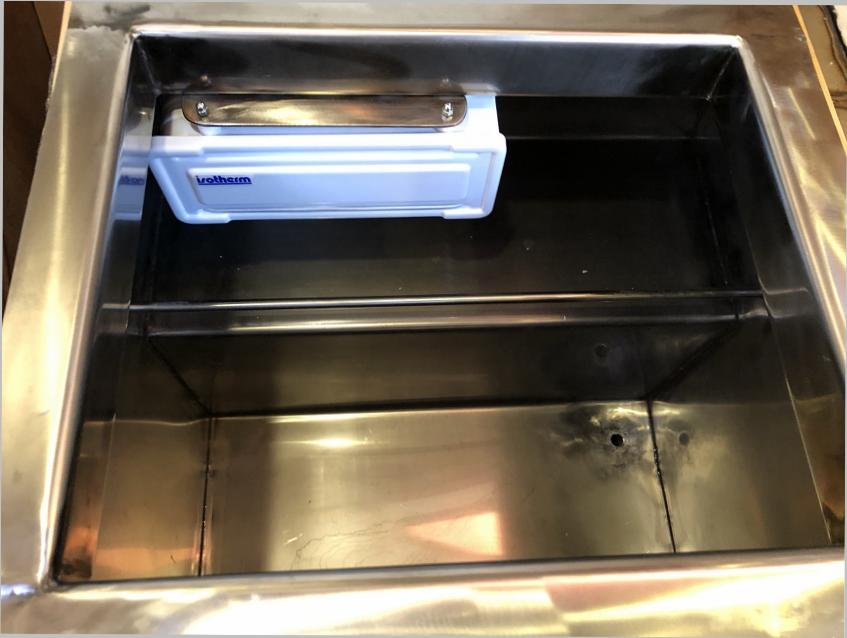

Below and right. The little freezer is in. Drain hole welded in. I made a 3D printed plug that fits in the hole.
The new, slightly deeper, lid is there.
Mesuring temp inside fridge and freezer after 2 hours - empty box :-)

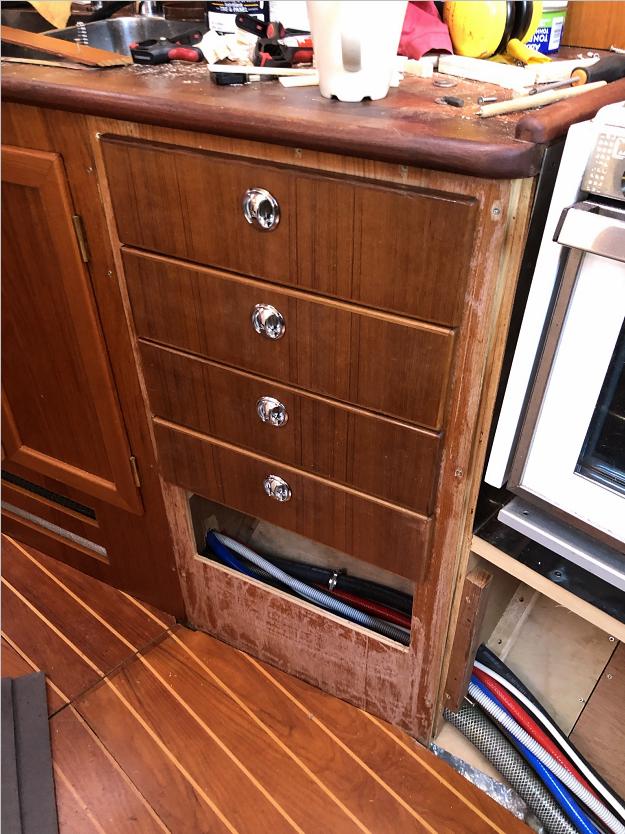

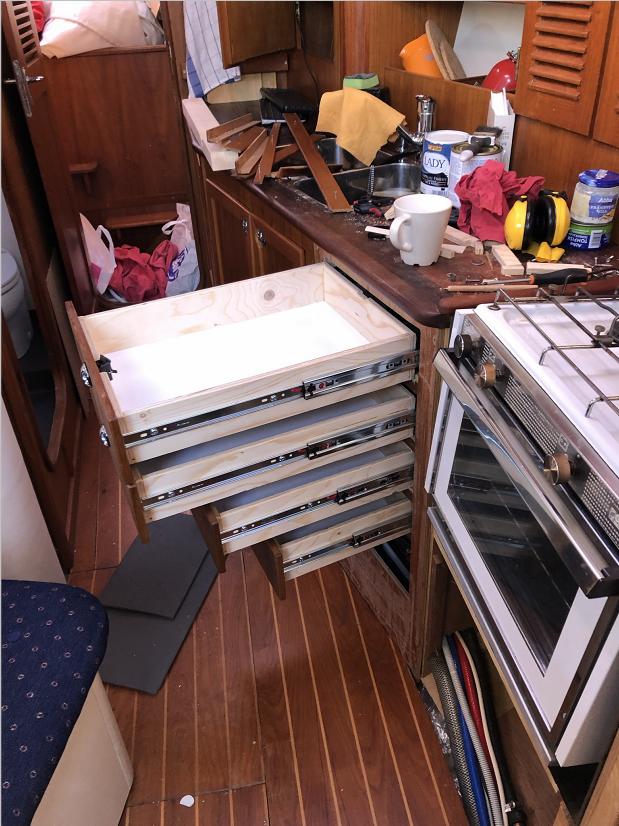

Every ting is in place again! Top 2 drawers 500mm then 400mm and 300 mm. The lowest area just got a fixed lid. I reqlly like the handle/latches for the drawers because if drawers is in - it is locked.
Varnish and some small teak job todo... Great! :-)
COLD! :-)
The box is ca 100 liters of volume and after almost 2 hours temp went down to -3 and freezer is really cold!
The noise from the compressor is heard when sitting in the salong and hatches closed but just a soft low humming. Can't hear a thing from the bunks. I had a backup plan to install the comressor in the engine room - plenty of space - but I belive the best place is where it is now.
No sking this year. Somtime there where no wind...
A very short motoring film. (Click the image)
